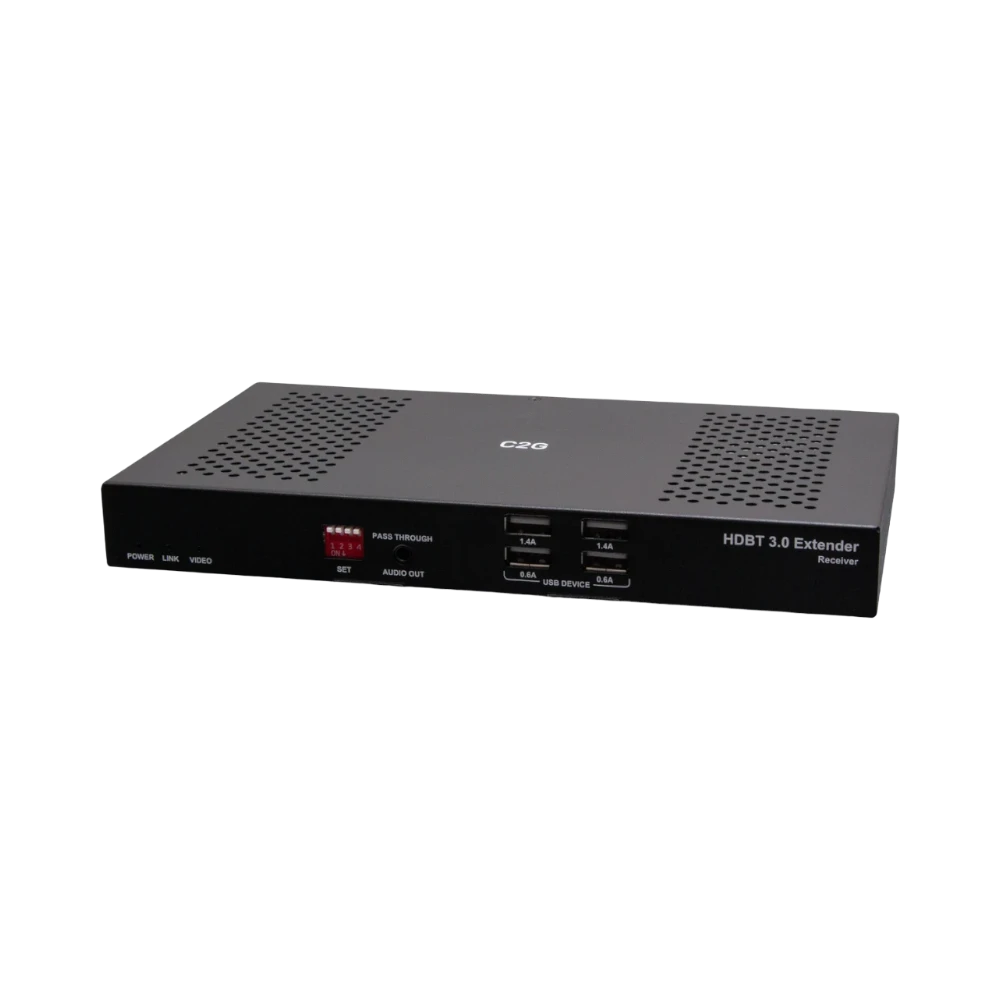

C2G HDMI HDBaseT + USB-B to A + RS232 Over Cat Extender Box TX to Box RX (18Gbps) 4K 60Hz up to 328ft

The C2G 30055 is an HDMI HDBaseT extender set that carries uncompressed 4K video, audio, USB data, Ethernet, control signals, and power over a single Cat6a cable. It includes a transmitter and a receiver, allowing you to position a source device or display up to 328 feet apart without losing image quality.

Support for 4K resolution at 60Hz and 18Gbps throughput keeps every frame sharp and every color accurate, matching the performance of a direct short-run HDMI connection. Multichannel audio formats are preserved as well, so sound stays fully synchronized with the picture.

The built-in USB 2.0 pass-through lets you place peripherals such as touch displays, webcams, keyboards, or interactive whiteboards at the remote end while the host computer remains safely in a rack or control room. RS232 pass-through provides system integrators with a straightforward way to manage projectors, displays, or switching equipment from a central location.

5Play functionality means that video, audio, Ethernet, control, and power all travel on the same cable. PoH delivers power from the transmitter to the receiver, removing the need for an additional outlet near the display and reducing installation time.

This extender is an ideal fit for corporate conference rooms, education spaces, digital signage networks, and retail environments where long cable runs and reliable two-way control are important.

• Extends uncompressed 4K HDMI video up to 328 ft over Cat6a
• USB 2.0 pass-through for remote peripherals or touch panels
• 5Play support transports video, audio, Ethernet, control, and power on one cable
• 18Gbps bandwidth maintains full HDMI 2.0 quality, including HDR content
• PoH powers the receiver from the transmitter for a clean installation
• Compatible with HDMI 2.0 and HDCP 2.2 standards
• RS232 pass-through enables device control from a central system
