MSD 7566-2 Two Channel Relay Module
4.1 (67 items)
Limited Time Sale$59.97 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 208125169 | Release Date | 2026/03/22 | List Price | $39.98 | Model Number | 208125169 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

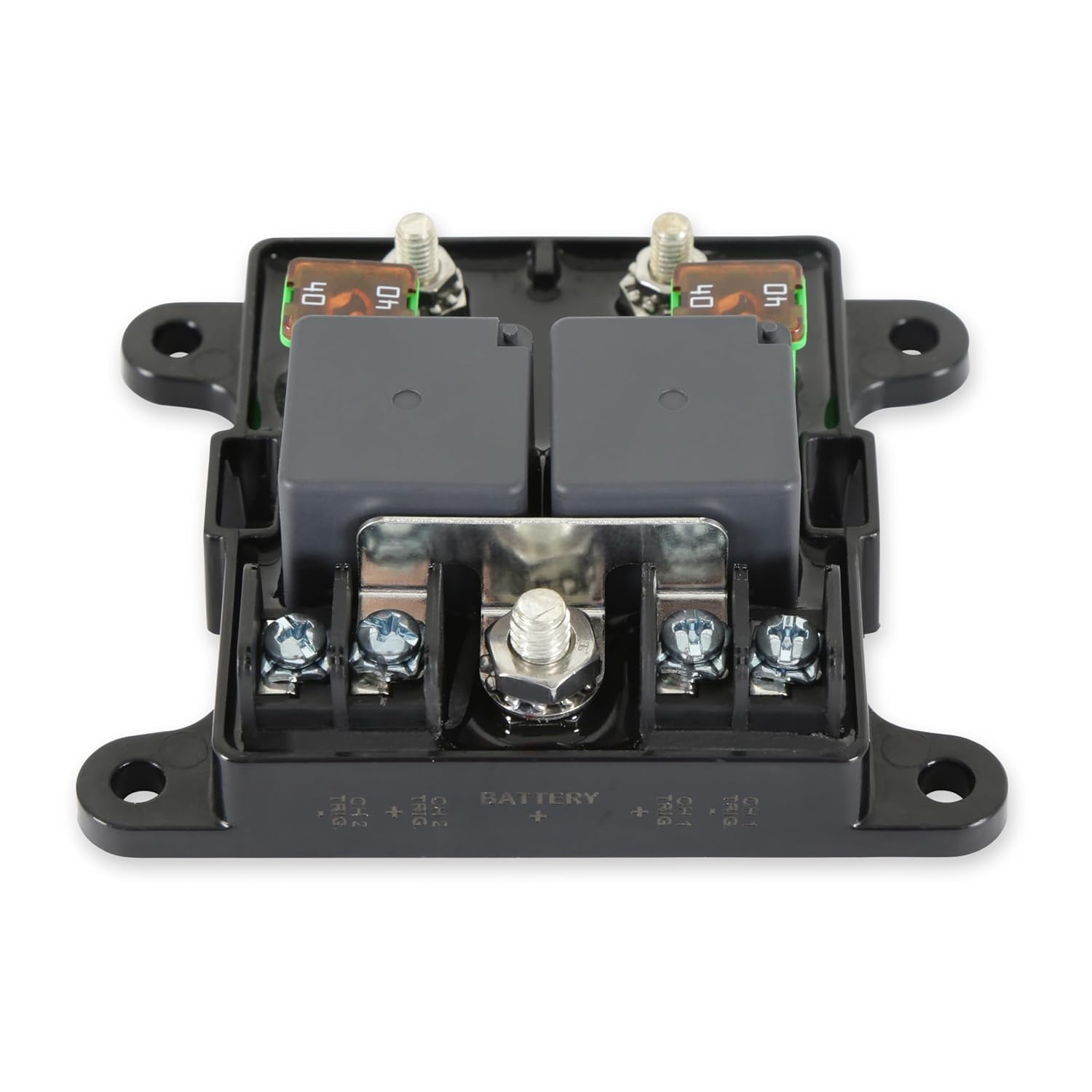

Two 40 Amp Relays. MSD relay modules are designed to be easily installed in most automotive electrical systems where a high amperage relay is needed. These relay modules are perfect use with high amperage electric fuel pumps and high CFM electric cooling fans. Each relay comes with a 40amp fuse, however lower amp fuses can be installed if required. The relay housing comes with a labeled lid that snaps into place providing a clean installation, and protecting the main power stud and triggers from contamination or accidental contact.
- 7V to 20V supply to fit a wide variety of applications
- Removable cover for easy accessibility
- Configurable single-wire activation with Ground (-) input or 12V (+) input, with removal of the Tie-Bar
- Independent 40A outputs, to supply power to most aftermarket fuel pumps and electric fans
- LED status indicators, show you which channel is triggered at a glance
| Manufacturer | MSD |
|---|---|
| Item model number | 7566-2 |
| Product Dimensions | 4.9 x 4.4 x 3.3 inches; 3.81 Pounds |
Relay Control Module
Maryland
